[9.1.3] An extension of the cosine law in which the distance d between the source and surface is replaced by h/cosθ , where h is the perpendicular distance of the source from the plane in which the point is located. It is expressed by (see Figure 24):

E = (I cos3θ)/h2

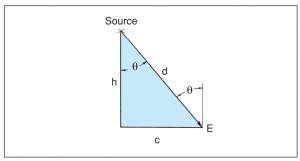

Figure 24

Figure 24
