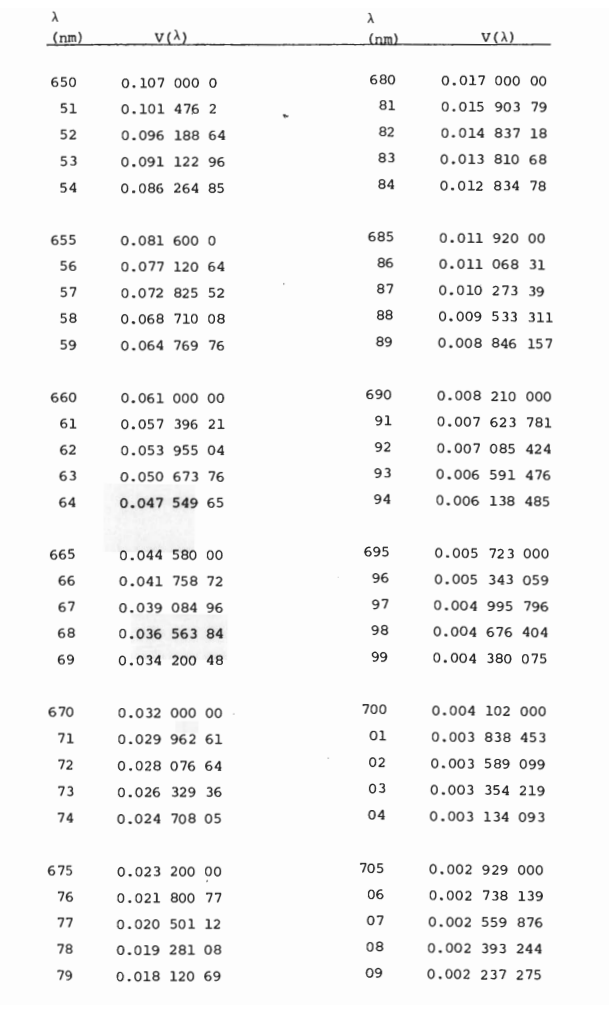

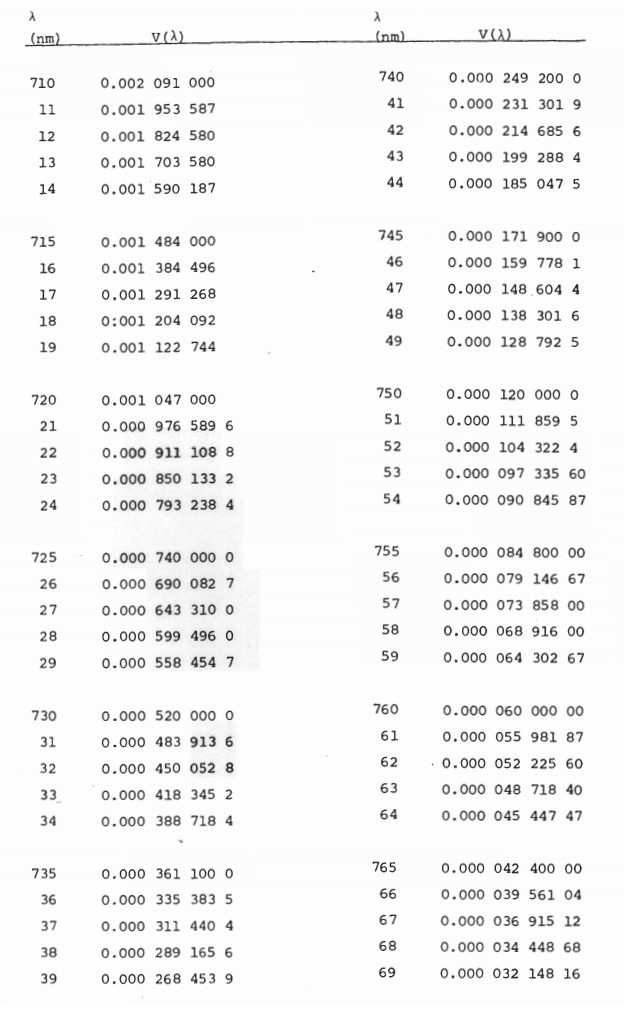

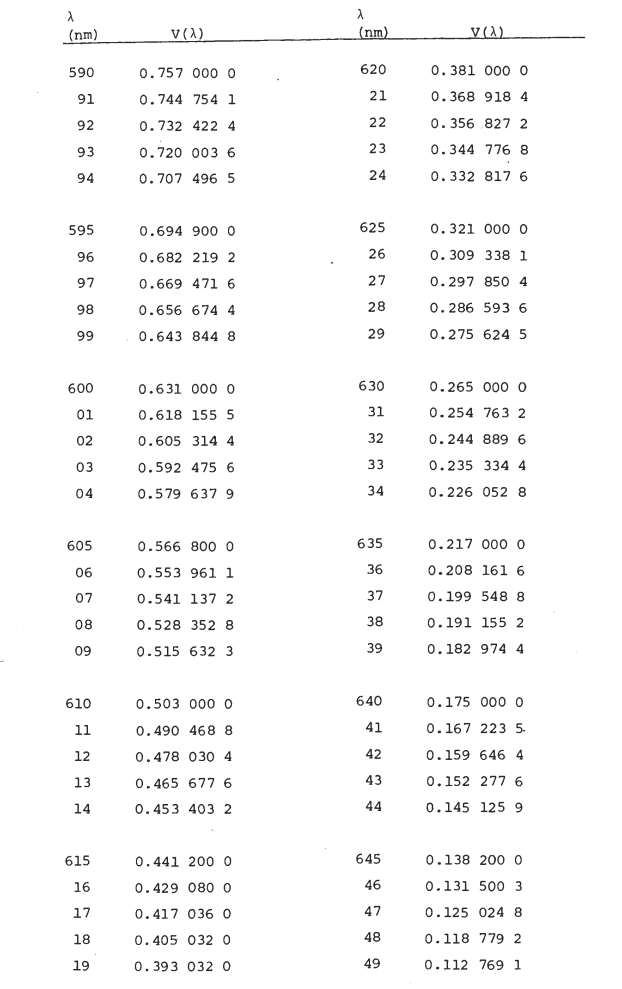

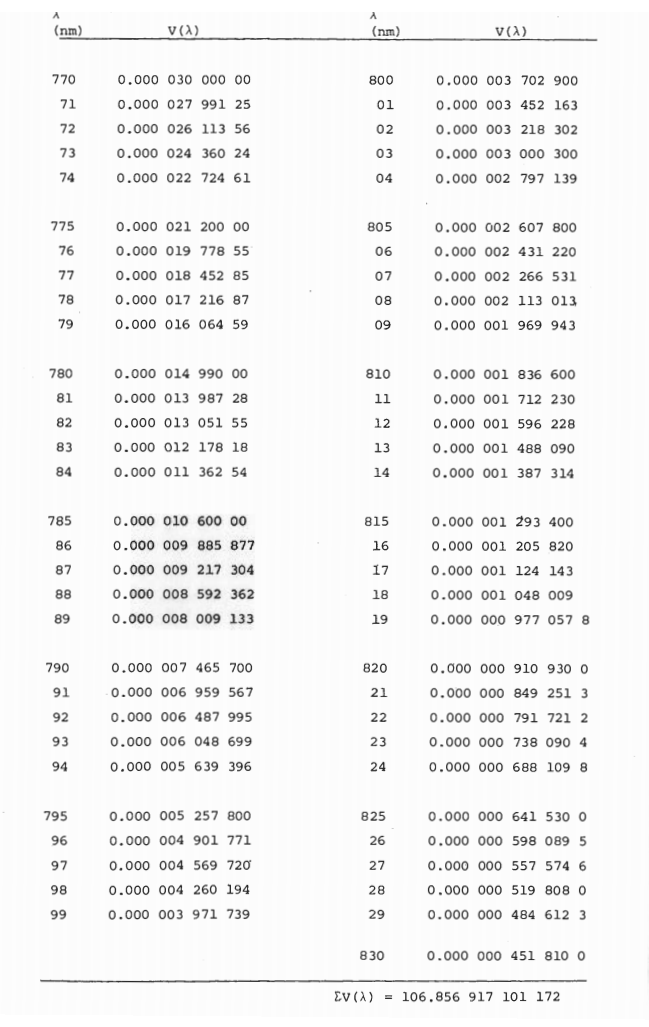

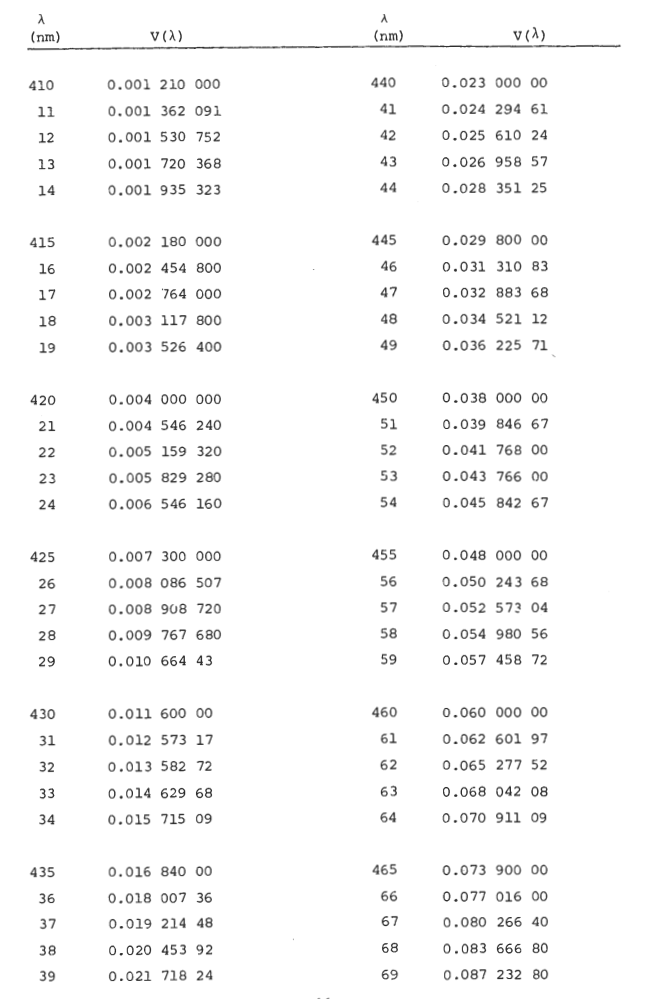

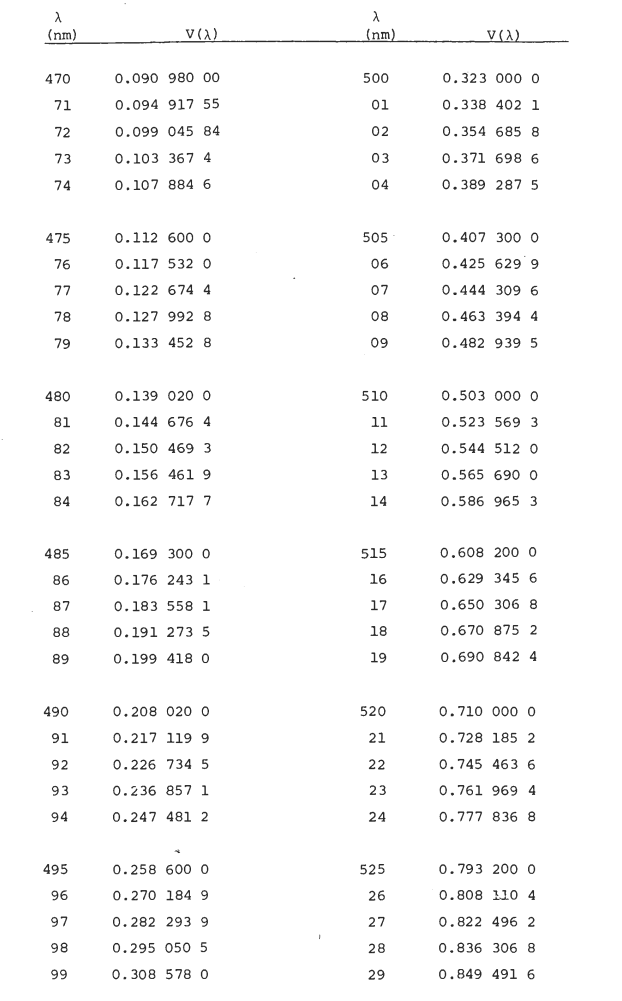

Table T-4: Definitive Values of the Special Luminous Efficiency Function for Photopic Vision V(λ)

[T-4]

NOTE: This table’s section number was changed in RP-16-17 Addendum 1.  The previous section number was 13.4.

Notes:

    • Information in this table was obtained from CIE 18.2 (1983), The Basis of Physical Photometry, 2nd ed.



    • Values of V(λ) are expressed with as many as 13 significant digits. Therefore, the digits are shown in triplets.



    • Σ V(λ) = 106.856917101172.



« Back to Definitions Index
