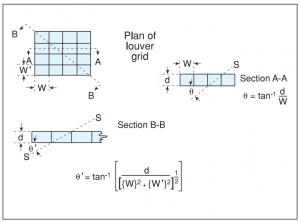

[10.2.4.1] The angle between the horizontal plane of the baffles or louver grid and the plane at which the louver conceals all objects above. Figure 26 shows louver shielding angles θ and θ’.
Note: The planes are usually chosen such that their intersection is parallel with the louvered blade.
